On 10/26/11, the 1983 Hunter 33 C (C stands for Cherubini Design) became
ours. A new/old sailboat with better/longer cruising capability. The details and specs can be found at:
Hunter 33 SD
(Shoal Draft).

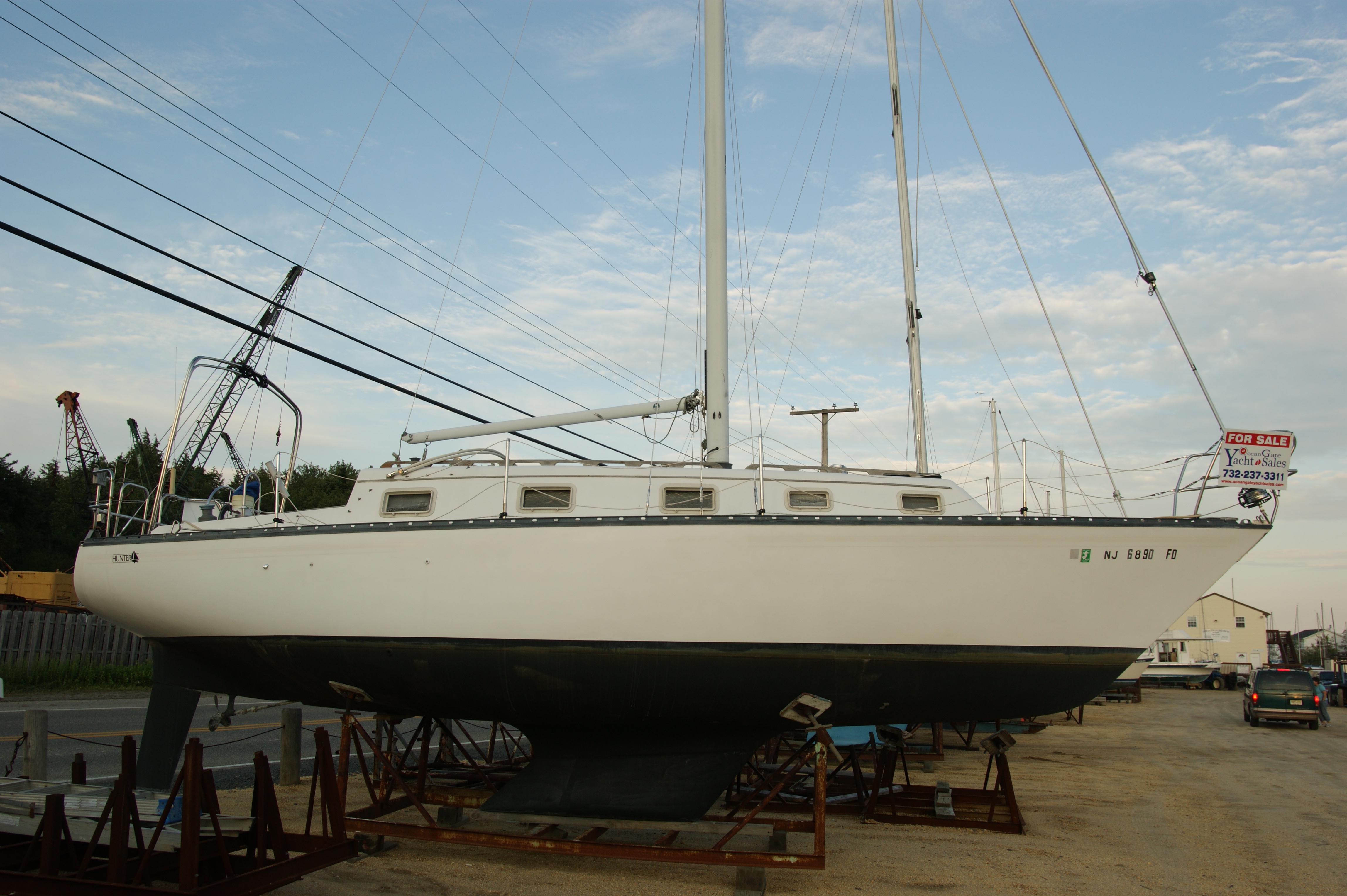

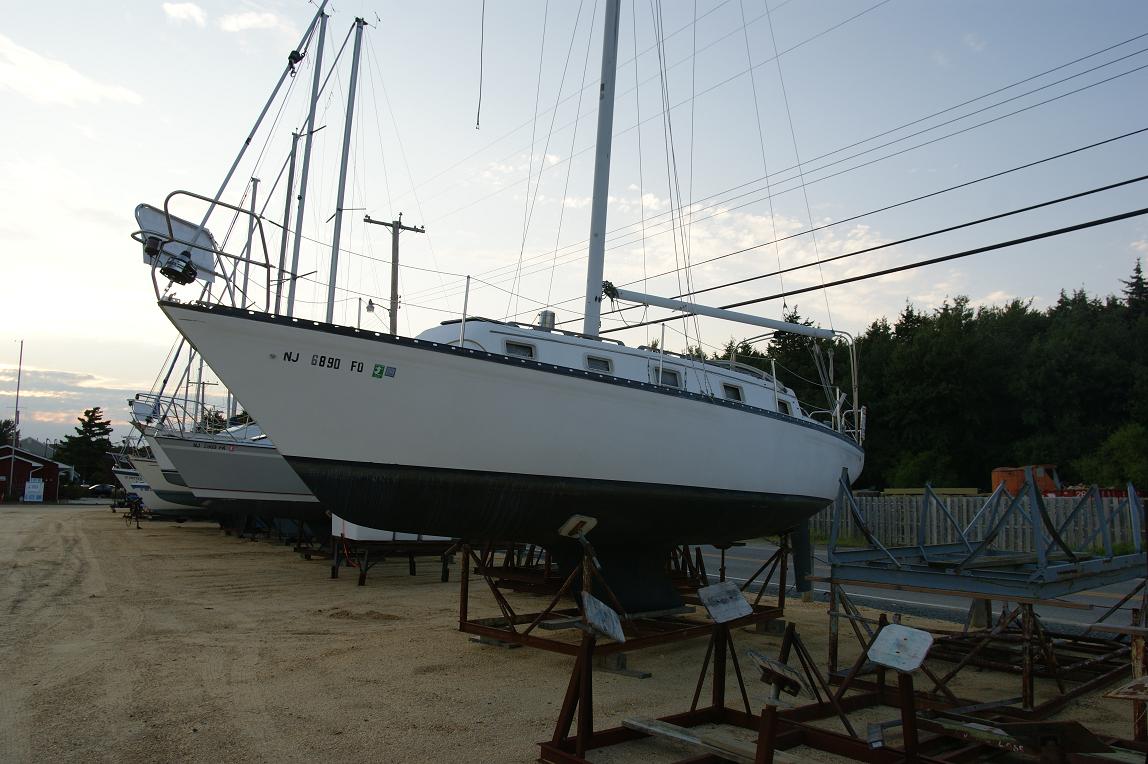

It is currently on the hard in my marina in Bayville, NJ. I will post
updates on refit on the upgrades page and will add a cruising page when we
actually start sailing her. She is fairly bare without her canvas and
sails bent on so the pictures look fairly lifeless. We will add a few once
she splashes and someone catches us in a photo op. She has been named
Arpeggio. Val posed for a picture next to our new darling.

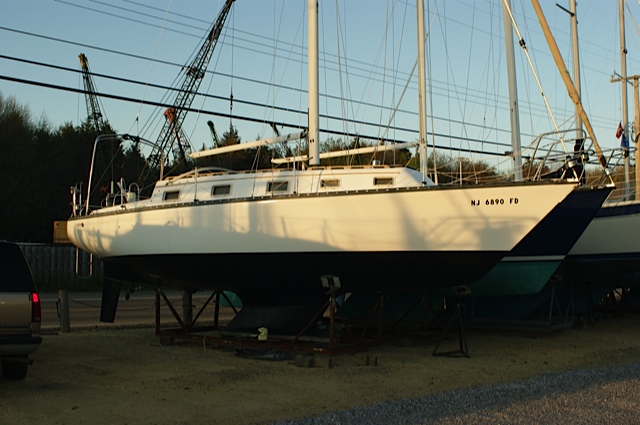

After Poliglow and Teak Cleaning ->
She is a solid shoal draft cruiser with many upgrades applied over the past 3
years to get her into a solid condition. She needs work, but who doesn't.
The Decision Process I used - Click on the
link to the left if you care to go into the convoluted decision making process I
went through to find out next boat.

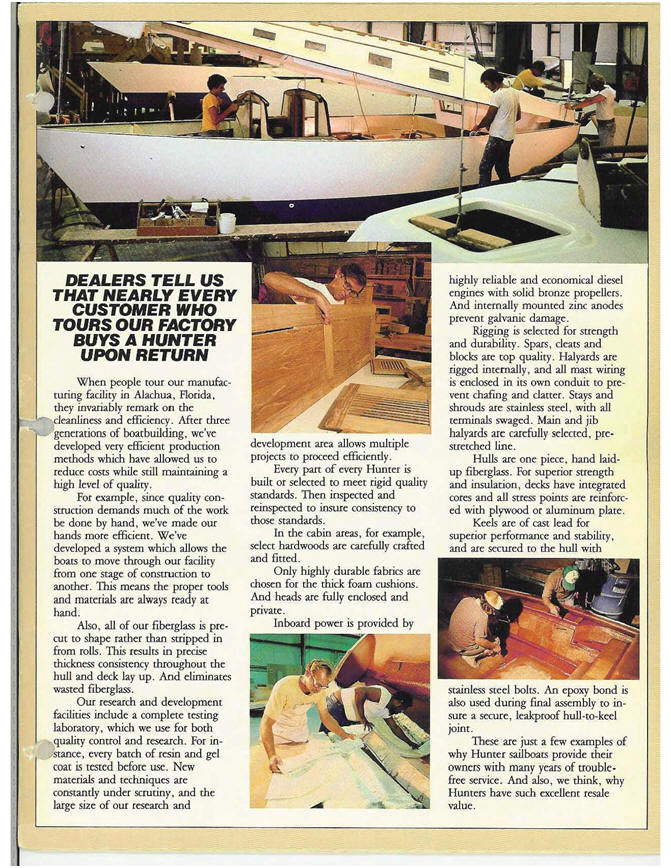

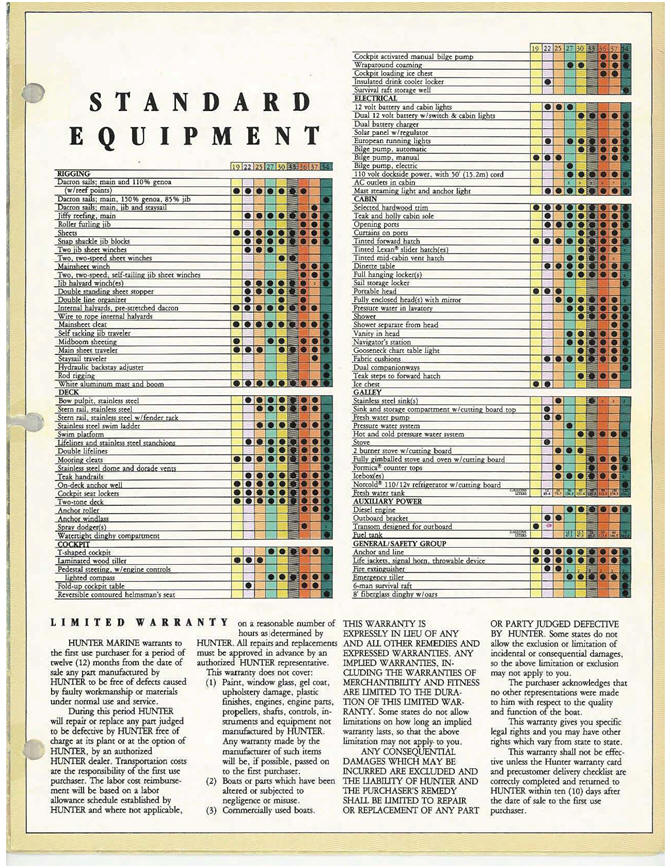

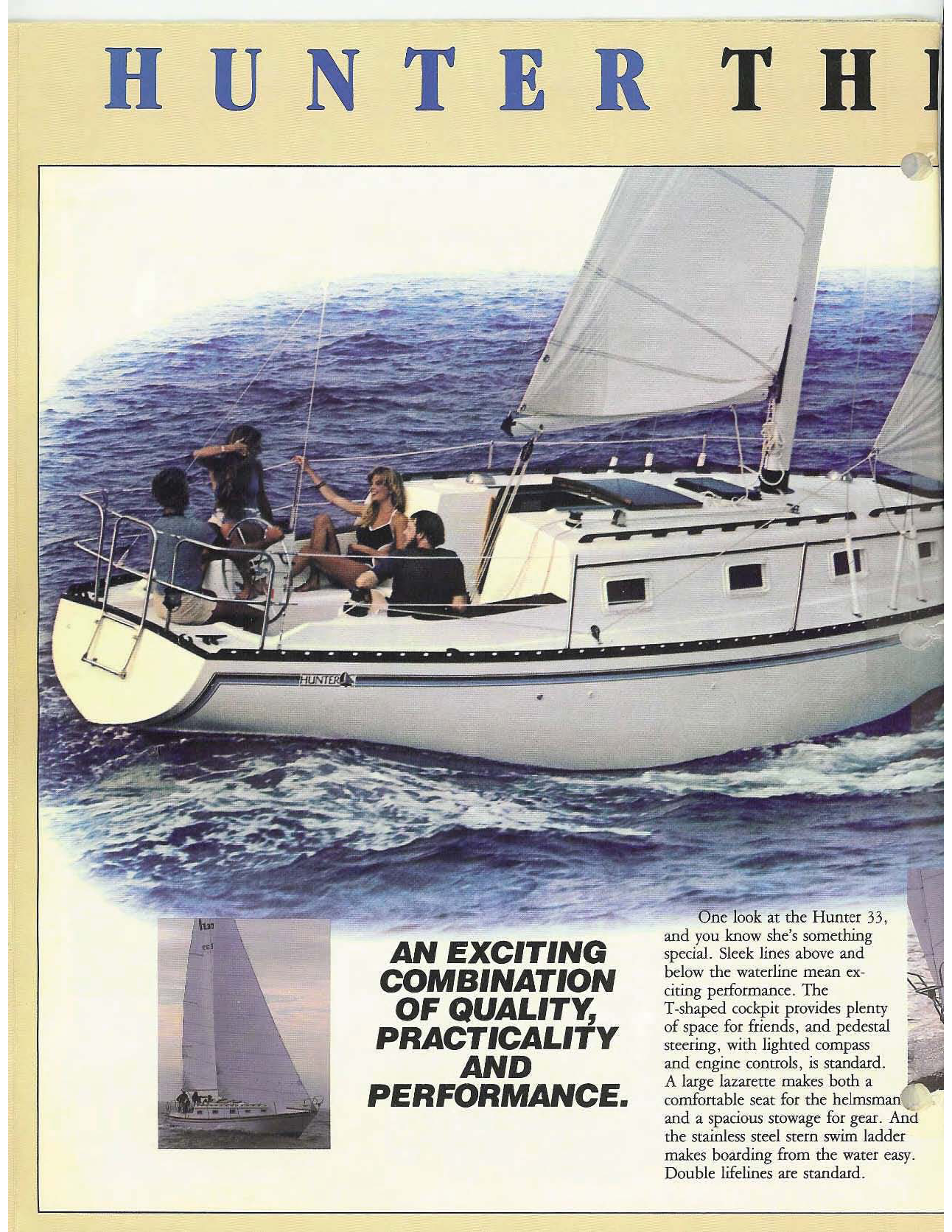

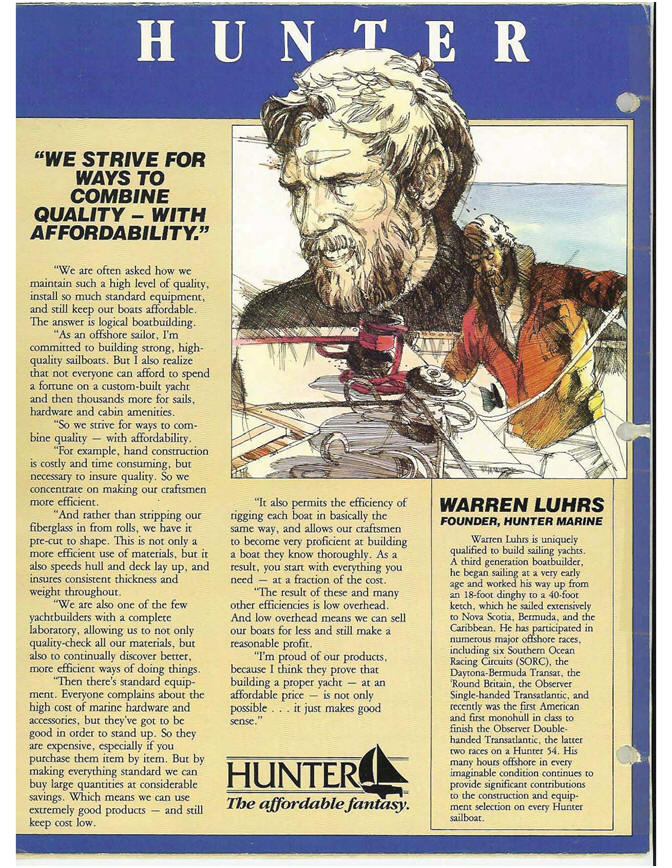

Sales brochure from the 80's:
Rig/Sail Dimensions
THE STANDARD BOAT DIMENSIONS |
Data courtesy of:
sailrite.COM |
I |
J |
P |
E |
I2/P2 |
J2/E2 |
42.50ft
(12954mm) |
14.00ft
(4267mm) |
37.16ft
(11326mm) |
10.75ft
(3277mm) |
|
|
SAIL
DIMENSION TABLES (the more popular sails only) |
HUNTER 33 MAINSAIL |
Price This Sail |
Luff |
37.16*ft (11326mm) |
Foot |
10.75*ft (3276mm) |
Leech-AftHdBd |
38.12*ft (11618mm) |
Tack Ang |
88* |
Diag (clew/head) |
38.32*ft (11679mm) |
Head (inches) |
4.5*in (114mm) |
Area (no Roach) |
205.67*ft2 (19107mm2) |
Comments |
|
|
HUNTER 33 GENOA |
Price This Sail |
Luff |
42.51*ft (12957mm) |
Foot |
22.69*ft (6915mm) |
Leech |
39.89*ft (12158mm) |
Perc LP |
150.0* |
Length Perp |
21*ft (6400mm) |
Deck Angle |
4.03* |
Area |
446.34*ft2 (41466mm2) |
Comments |
|
|
HUNTER 33 JIBSAIL |
Price This Sail |
Luff |
35.8*ft (10911mm) |
Foot |
18.63*ft (5678mm) |
Leech |
30.94*ft (9430mm) |
Perc LP |
115.00* |
Length Perp |
16.1*ft (4907mm) |
Deck Angle |
11.99* |
Area |
288.15*ft2 (26770mm2) |
Comments |
|
|
HUNTER 33 SPINNAKER |
Price This Sail |
Stay |
42.51*ft (12957mm) |
Foot |
25.2*ft (7680mm) |
MidGirth |
25.2*ft (7680mm) |
Perc LP |
180* |
|
|
|
|
Area |
911*ft2 (84635mm2) |
Comments |
|
|
HUNTER 33 ASYMMETRICAL |
Price This Sail |
Luff |
42.51*ft (12957mm) |
Foot |
23.1*ft (7040mm) |
Leech |
39.11*ft (11920mm) |
Perc LP |
165* |
|
|
|
|
Area |
736*ft2 (68377mm2) |
Comments |
|
|
HUNTER 33 DRIFTER |
Price This Sail |
Luff |
42.51*ft (12957mm) |
Foot |
23.62*ft (7199mm) |
Leech |
38.02*ft (11588mm) |
Perc LP |
150.0* |
Length Perp |
21*ft (6400mm) |
Deck Angle |
9.02* |
Area |
446.33*ft2 (41466mm2) |
Comments |
|
|
HUNTER 33 STORMJIB |
Price This Sail |
Luff |
24.61*ft (7501mm) |
Foot |
10.55*ft (3215mm) |
Leech |
20.07*ft (6117mm) |
Perc LP |
60.0* |
Length Perp |
8.4*ft (2560mm) |
Deck Angle |
19.00* |
Area |
103.37*ft2 (9603mm2) |
Comments |
|
|
|
|
