H33C Traveler
Home Up


Lewmar
Lewmar Mainsheet Traveler Kit
Manufacturer:
Lewmar




Lewmar Mainsheet Traveler Kit

Item # : 615000


  • Size 1, Purchase System: 4:1, Control Line: 5/16"
  • Safe Working Load: 1980 lbs
  • Designed for Boats up to 36 Feet

    Model Number: 29461354
  •   Features:
    Lewmar makes selecting your mainsheet system simple with complete Mainsheet System Kits
    Lewmar's integrated range of mainsheet travelers are fast, functional and...


    Download in .PDF format

    Comes with Lewmars sliding bolt track, which allows you to retrofit the new track to your deck using the original bolt holes.

    Kit includes:


  • 1 x Mainsheet Car, Shackle, 2 Double Control Line Sheaves, Cleats and Becket - Part No 29431916
  • 2 x End Stop with Double Control Line Sheaves - Part No 29471032
  • 1 x Sliding Bolt Track - Part No 29161115

    Max Mainsail Area


  • End Boom: 34m (366ft)
  • Mid Boom: 21m (226ft)
  • Safe working load: 900Kg (1980lb)

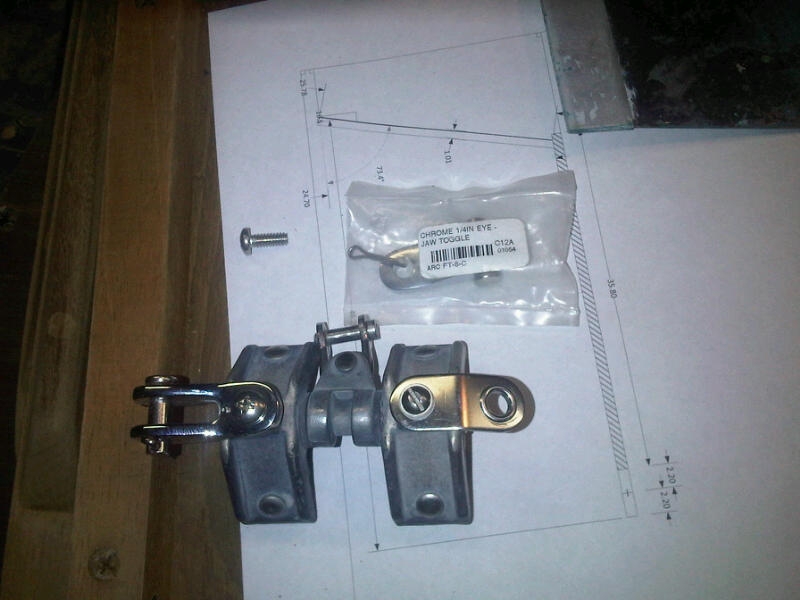

  • Old Idea:

    first take, deciding between the Roberts Jaw Toggle or the Mast Tang for a small boat.

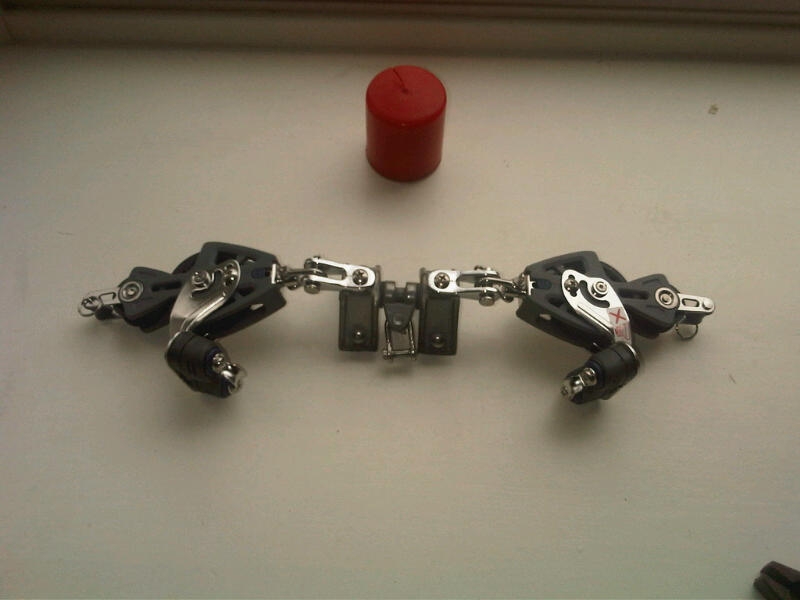

    I decided on the Roberts Jaw Toggle, then added Lewmar 50mm Synchro blocks capable of taking 3/8" line and loads over 1000 pounds (standard single fiddle block on the combing).  Even at 4-1 advantage, I will not be trying to haul 1000 pounds with 5/16 line.  The line can take it, but I can't pull 250 with a line that fine.

    Synchro blocks:

    http://www.lewmar.com/products.asp?id=7906&type=117&channel=1

    http://www.lewmar.com/products.asp?id=7906&lid=24696
